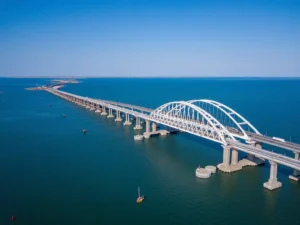

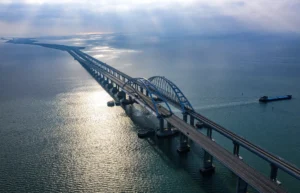

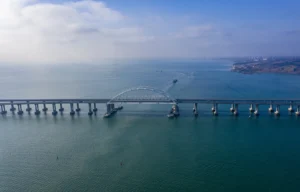

The crossing consists of two parallel bridges – a motorway bridge and railroad bridge;
The decks for the highway are beam composite reinforced concrete, simple and continuous ones of individual design;
Steel decks with an orthotropic plate are located above the water area of the Kerch Strait. The design span is from 54.21m to 64.20 m;
There will be a separate deck for each traffic direction. In the crosssection, two main I-beams create the span: they are connected via transversal beams and the system of vertical and horizontal braces;
The decks for the railway tracks are simple, made of solid metal with an orthotropic plate and a ballast bed;
The design span is from 54.6 m to 62.56 m;
The decks are separate, one for each railway track and connected on the piers with jacking beams;
The main box-section girders of the deck are divided into two segments horizontally;

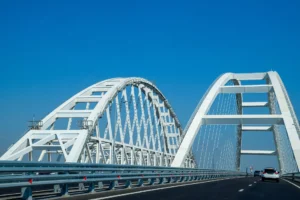

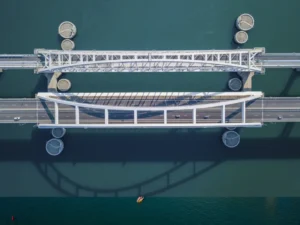

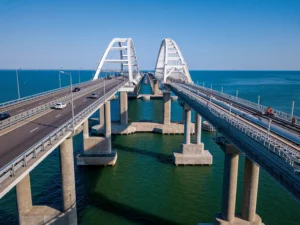

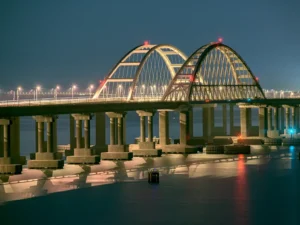

Arch spans with a design span of 227 m are located over the Kerch-Yenikalsky Channel and provide a clearance of 185 m x 35 m;
category of railway track – II;
category of motor road – 1B;
designed length of the crossing – 19,000 m;
length of the motorway bridge – 16,857.28 m;
length of the railroad bridge – 18,118.05 m.
